Application standards
1.Design and manufacture conform to: API602 ,BS5352, ANSI B16.34;
2.Connection ends conform to:
1)Socket welded dimension conform to ANSI B16.11,JB/T1751
2)Screw ends dimension conform to ANSI B1.20.1,JB/T7306
3)Butt-welded conform to ANSI B16.25 JB/T12224
4)Flange standard conform ANSI B16.5,JB79
3.Test and inspection conform to: API 598,GB/T13927,JB/T9092
4.Structure features:
Bolted bonnet (B.B),outside screw and yoke (OS&Y)
Welded bonnet(W.B),outside screw and yoke (OS&Y)
Pressure sealed bonnet(PS.B),outside screw and yoke (OS&Y)
5.Materials conform to ANSI/ASTM
6.Main materials:
A105;LF2;F5;F11;F22;304(L);316(L);
F347;F321;F51;Monel;20 Alloy.
Carbon steel temperature-pressure
CL150-285 P.S.I@100°F
CL300-740 P.S.I@100°F
CL600-1480 P.S.I@100°F
CL800-1975 P.S.I@100°F
CL1500-3705 P.S.I@100°F
The Material of Valve Parts
| NO. | Part name | The Material of Valve Parts | ||||||
| 1 | Body | A105 | A105 | LF2 | F11 | F304(L) | F316(L) | F51 |
| 2 | Seat | 410 | 410+HF | 304 | 410HF | 304(L) | 316(L) | F51 |
| 3 | Wedge | F6a | F6a | F304 | F6aHF | F304(L) | F316(L) | F51 |
| 4 | Stem | 410 | 410 | 304 | 410 | 304(L) | 316(L) | F51 |
| 5 | Gasket | SS+Graphite | SS+Graphite | SS+Graphite | SS+Graphite | SS+Graphite | SS+Graphite | SS+Graphite |
| 6 | Bonnet | A105 | A105 | LF2 | F11 | F304(L) | F316(L) | F51 |
| 7 | Bolt | B7 | B7 | L7 | B16 | B8(M) | B8(M) | B8M |
| 8 | Pin | 410 | 410 | 410 | 410 | 304 | 304 | 304 |
| 9 | Gland | 410 | 410 | 304 | 410 | 304 | 316 | F51 |
| 10 | Gland eyebol | B7 | B7 | L7 | B16 | B8(M) | B8(M) | B8M |
| 11 | Gland flange | A105 | A105 | LF2 | F11 | F304 | F304 | F304 |
| 12 | Hex nut | 2H | 2H | 2H | 2H | 8(M) | 8(M) | 8M |
| 13 | Stem nut | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| 14 | Locking nut | 35 | 35 | 35 | 35 | 35 | 35 | 35 |
| 15 | Nameplate | AL | AL | AL | AL | AL | AL | AL |
| 16 | Handwheel | A197 | A197 | A197 | A197 | A197 | A197 | A197 |
| 17 | Lubricating gasket | 410 | 410 | 410 | 410 | 410 | 410 | 410 |
| 18 | Packing | Graphite | Graphite | Graphite | Graphite | Graphite | Graphite | Graphite |

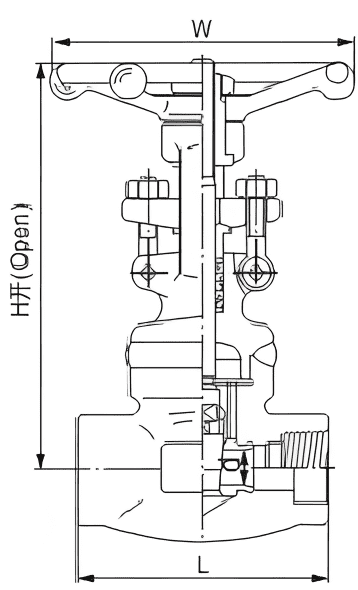

800LB Bolted bonnet(W.B),full port reducing port outside screw and yoke (OS&Y)
| NPS | R.P | – | 1/2” | 3/4” | 1” | 1 1/4” | 1 1/2” | 2” | 2 1/2” | 3” |
| F.P | 1/4” | 3/8” | 1/2” | 3/4” | 1” | 1 1/4” | 1 1/2” | 2” | 2 1/2” | |
| Face to Face | L(mm) | 79 | 79 | 92 | 111 | 120 | 120 | 140 | 178 | 180 |
| Handwheel | W(mm) | 100 | 100 | 100 | 125 | 160 | 160 | 180 | 200 | 220 |
| Height | H(mm) | 161 | 161 | 163 | 196 | 223 | 251 | 290 | 333 | 370 |
| Flow Port | d(mm) | 8 | 10.5 | 13.5 | 18 | 24 | 29 | 36.5 | 45 | 51 |
| Weight(Kg) | 1.9 | 1.9 | 2.1 | 3.2 | 5.2 | 6.9 | 10.4 | 15.8 | 22 | |
1500LB Bolted bonnet(W.B),full port reducing port outside screw and yoke (OS&Y)
| NPS | R.P | – | 1/2” | 3/4” | 1” | 1 1/4” | 1 1/2” | 2” | 2 1/2” | 3” |
| F.P | 1/4” | 3/8” | 1/2” | 3/4” | 1” | 1 1/4” | 1 1/2” | 2” | 2 1/2” | |
| Face to Face | L(mm) | 92 | 111 | 111 | 120 | 120 | 140 | 178 | 180 | |
| Handwheel | W(mm) | 100 | 125 | 125 | 160 | 160 | 160 | 200 | 220 | |
| Height | H(mm) | 191 | 192 | 192 | 240 | 258 | 330 | 355 | 370 | |
| Flow Port | d(mm) | 8 | 13.5 | 13.5 | 18 | 24 | 29 | 36.5 | 45 | |
| Weight(Kg) | 2.4 | 4 | 4 | 4.8 | 7.1 | 11 | 16 | 22.8 | ||
