Design Specifications
Design standards | Structure length | Flange connection | Test and inspection | Test and inspection |
API 6D,API 607,ISO 17292 | ASME B16.1 | ASME B16.5 | API 598 | ASME B16.34 |
Pressure Test
Pressure rate | Shell test (Mpa) | Low Pressure Seal test (Mpa) | High Pressure Seal test (Mpa) | Temperature | Suitable medium |
PN16 | 2.4 | 0.6 | 1.76 | ≤600℃ | Water,Oil,Gas |
PN25 | 3.8 | 0.6 | 2.75 | ||
PN40 | 6 | 0.6 | 4.4 | ||
PN64 | 9.6 | 0.6 | 7.1 | ||
PN100 | 15 | 0.6 | 11 | ||
150LB | 3 | 0.6 | 2.2 | ||
300LB | 7.5 | 0.6 | 5.5 | ||
600LB | 15 | 0.6 | 11 | ||
900LB | 3 | 0.6 | 16.5 | ||
1500LB | 7.5 | 0.6 | 27.5 | ||
2500LB | 15 | 0.6 | 45.8 |
Material of Main Parts
NO. | Part Name | Part Material | |||||
1 | Body | WCB | ZGOCr18Ni10Ti | A351CF8 | A351CF8M | A351CF3 | A351CF3M |
2 | Cap | WCB | ZGOCr18Ni10Ti | A351CF8 | A351CF8M | A351CF3 | A351CF3M |
3 | Ball | F304 | A182F321 | A182F304 | A182F316 | A182F304L | A182F316L |
4 | Seat | PTFE | PTFE | PTFE | PTFE | PTFE | PTFE |
5 | Stem | 0Cr18N10T | OCr18Ni¹0Ti | 06Cr19Ni10 | 06Cr17Ni¹2Mo2 | 022Cr19Ni10 | 022Cr17Ni12Mo2 |
6 | Gasket | 304+Graphite | 304+Graphite | 304+Graphite | 304+Graphite | 304+Graphite | 304+Graphite |
7 | Bolt | B7 | A193B8 | A193B8 | A193B8M | A193 B8 | A193 B8M |
8 | Nut | A1948 | A1948 | A1948 | A1948M | A1948 | A1948M |
9 | Temperature | Soft seal-196-250℃ ,Hard seal-196-425℃ | |||||
10 | Medium | Nitric acid type weak corrosive medium |

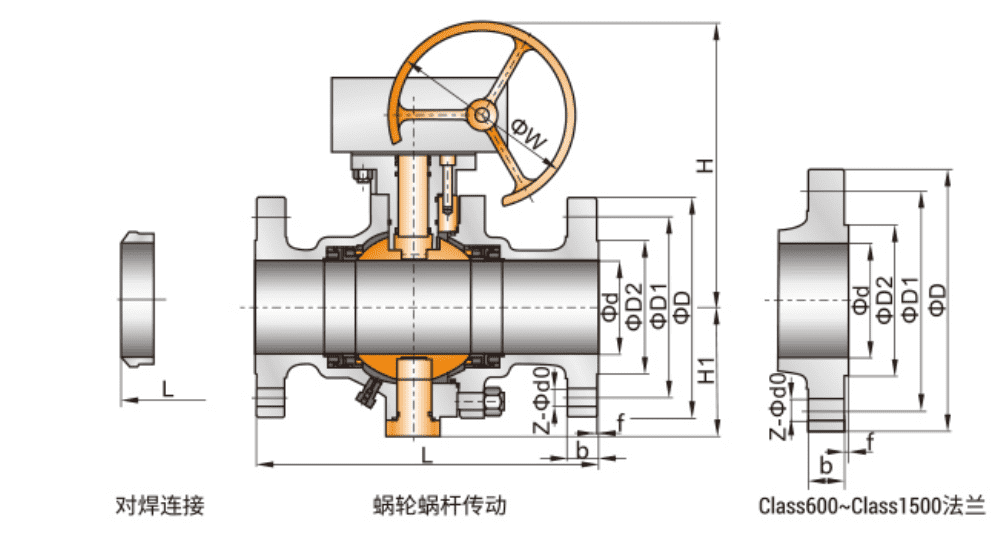

300LB Main External Dimension(Unit:mm)
DN | NPS | L | d | D | D1 | D2 | b | f | z-d | H | H1 | W | |
RF | BW | ||||||||||||
50 | 2” | 216 | 216 | 51 | 165 | 127 | 92 | 23 | 1.6 | 8-22 | |||
65 | 2 1/2” | 241 | 241 | 64 | 190 | 149 | 105 | 26 | 1.6 | 8-22 | |||
80 | 3” | 283 | 283 | 76 | 210 | 168.5 | 127 | 29 | 1.6 | 8-22 | |||
100 | 4” | 305 | 305 | 102 | 254 | 200 | 157 | 32 | 1.6 | 8-22 | 340 | 140 | 300 |
125 | 5” | 318 | 381 | 127 | 279 | 235 | 186 | 35 | 1.6 | 8-22 | 370 | 170 | 300 |
150 | 6” | 403 | 457 | 152 | 318 | 270 | 216 | 37 | 1.6 | 12-22 | 402 | 192 | 300 |
200 | 8” | 502 | 521 | 203 | 381 | 330 | 270 | 41.5 | 1.6 | 12-25 | 498 | 246 | 300 |
250 | 10” | 568 | 559 | 254 | 445 | 387.5 | 324 | 48 | 1.6 | 16-29 | 655 | 303 | 400 |
300 | 12” | 648 | 635 | 305 | 521 | 451 | 381 | 51 | 1.6 | 16-32 | 658 | 348 | 400 |
350 | 14” | 762 | 762 | 337 | 584 | 514.5 | 413 | 54 | 1.6 | 20-32 | 686 | 378 | 400 |
400 | 16” | 838 | 838 | 387 | 648 | 571.5 | 470 | 58 | 1.6 | 20-35 | 880 | 429 | 600 |
450 | 18” | 914 | 914 | 438 | 711 | 628.5 | 533 | 61 | 1.6 | 24-35 | 1050 | 518 | 750 |
500 | 20” | 991 | 991 | 489 | 775 | 686 | 584 | 64 | 1.6 | 24-35 | 1110 | 540 | 750 |
600 | 24” | 1143 | 1143 | 591 | 914 | 813 | 692 | 70 | 1.6 | 24-41 | 1400 | 650 | 750 |
650 | 26” | 1245 | 1245 | 633 | 867 | 803.5 | 737 | 87 | 1.6 | 32-35.5 | 1500 | 750 | 750 |
700 | 28” | 1346 | 1346 | 684 | 921 | 857 | 787 | 87 | 1.6 | 36-35.5 | 1600 | 800 | 750 |
750 | 30” | 1397 | 1397 | 735 | 991 | 921 | 845 | 92 | 1.6 | 36-39 | 1720 | 860 | 750 |
800 | 32” | 1524 | 1524 | 779 | 1054 | 978 | 902 | 102 | 1.6 | 32-42 | 1800 | 900 | 750 |
900 | 36” | 1727 | 1727 | 874 | 1172 | 1089 | 1010 | 102 | 1.6 | 32-45 | 2200 | 1020 | 600 |
600LB Main External Dimension(Unit:mm)
DN | NPS | L | d | D | D1 | D2 | b | f | z-d | H | H1 | W | ||
RF | RJ | BW | ||||||||||||
50 | 2” | 292 | 295 | 292 | 51 | 165 | 127 | 92 | 26 | 6.4 | 8-19 | 240 | 94 | 300 |
65 | 2 1/2” | 330 | 333 | 330 | 64 | 190 | 149 | 105 | 29 | 6.4 | 8-22 | 290 | 115 | 300 |
80 | 3” | 356 | 359 | 356 | 76 | 210 | 168 | 127 | 32 | 6.4 | 8-22 | 340 | 136 | 300 |
100 | 4” | 432 | 435 | 432 | 102 | 273 | 216 | 157 | 38 | 6.4 | 8-25 | 358 | 152 | 300 |
125 | 5” | 508 | 511 | 508 | 127 | 330 | 266.5 | 186 | 45 | 6.4 | 8-29 | 400 | 180 | 300 |
150 | 6” | 559 | 562 | 559 | 152 | 356 | 292 | 216 | 48 | 6.4 | 12-29 | 445 | 209 | 400 |
200 | 8” | 660 | 664 | 660 | 203 | 419 | 349 | 270 | 56 | 6.4 | 12-32 | 498 | 263 | 400 |
250 | 10” | 787 | 791 | 787 | 254 | 508 | 432 | 324 | 64 | 6.4 | 16-35 | 653 | 312 | 400 |
300 | 12” | 838 | 841 | 838 | 305 | 559 | 489 | 381 | 67 | 6.4 | 20-35 | 665 | 354 | 500 |
350 | 14” | 889 | 892 | 889 | 334 | 603 | 527 | 413 | 70 | 6.4 | 20-38 | 738 | 389 | 600 |
400 | 16” | 991 | 994 | 991 | 385 | 686 | 603 | 470 | 77 | 6.4 | 20-41 | 920 | 440 | 750 |
450 | 18” | 1092 | 1095 | 1092 | 436 | 743 | 654 | 533 | 83 | 6.4 | 20-44 | 1100 | 530 | 750 |
500 | 20” | 1194 | 1200 | 1194 | 487 | 813 | 724 | 584 | 89 | 6.4 | 24-44 | 1200 | 560 | 750 |
600 | 24” | 1397 | 1407 | 1397 | 589 | 940 | 838 | 692 | 102 | 6.4 | 24-52 | 1480 | 670 | 750 |
900LB Main External Dimension(Unit:mm)
DN | NPS | L | d | D | D1 | D2 | b | f | z-d | H | H1 | W | ||
RF | RJ | BW | ||||||||||||
50 | 2” | 368 | 371 | 368 | 51 | 216 | 165.1 | 92 | 38.5 | 6.4 | 8-26 | 250 | 98 | 300 |
65 | 2 1/2” | 419 | 422 | 419 | 64 | 244 | 190.5 | 105 | 41.5 | 6.4 | 8-29 | 300 | 120 | 300 |
80 | 3” | 381 | 384 | 381 | 76 | 241 | 190.5 | 127 | 38.5 | 6.4 | 8-29 | 345 | 140 | 300 |
100 | 4” | 457 | 460 | 457 | 102 | 292 | 234.9 | 157 | 44.5 | 6.4 | 8-32 | 415 | 162 | 300 |
125 | 5” | 559 | 562 | 559 | 127 | 349 | 279.4 | 186 | 51 | 6.4 | 8-35 | 446 | 188 | 300 |
150 | 6” | 610 | 613 | 610 | 152 | 381 | 317.5 | 216 | 56 | 6.4 | 12-32 | 477 | 213 | 400 |
200 | 8” | 737 | 740 | 737 | 203 | 470 | 393.7 | 270 | 63.5 | 6.4 | 12-39 | 520 | 270 | 400 |
250 | 10” | 838 | 841 | 838 | 254 | 545 | 469.9 | 324 | 70 | 6.4 | 16-39 | 628 | 322 | 400 |
300 | 12” | 965 | 968 | 965 | 305 | 610 | 533.4 | 381 | 79.5 | 6.4 | 20-39 | 680 | 360 | 500 |
350 | 14” | 1029 | 1038 | 1029 | 322 | 640 | 558.8 | 413 | 86 | 6.4 | 20-42 | 750 | 400 | 600 |
400 | 16” | 1130 | 1140 | 1130 | 373 | 705 | 615.9 | 470 | 89 | 6.4 | 20-45 | 940 | 460 | 750 |
1500LB Main External Dimension(Unit:mm)
DN | NPS | L | d | D | D1 | D2 | b | f | z-d | H | H1 | W | ||
RF | RJ | BW | ||||||||||||
40 | 1 1/2” | 305 | 305 | 305 | 38 | 178 | 123.8 | 73 | 32 | 6.4 | 4-29 | 280 | 100 | 300 |
50 | 2” | 368 | 371 | 368 | 51 | 216 | 165.1 | 92 | 38.5 | 6.4 | 8-26 | 320 | 113 | 300 |
65 | 2 1/2” | 419 | 422 | 419 | 64 | 244 | 190.5 | 105 | 41.5 | 6.4 | 8-29 | 340 | 125 | 300 |
80 | 3” | 470 | 473 | 470 | 76 | 267 | 203.2 | 127 | 48 | 6.4 | 8-32 | 385 | 138 | 300 |
100 | 4” | 546 | 549 | 546 | 102 | 311 | 241.3 | 157 | 54 | 6.4 | 8-35 | 415 | 171 | 300 |
125 | 5” | 673 | 676 | 673 | 125 | 375 | 292.1 | 186 | 73.5 | 6.4 | 8-42 | 480 | 200 | 400 |
150 | 6” | 705 | 711 | 705 | 144 | 394 | 317.5 | 216 | 83 | 6.4 | 12-39 | 580 | 222 | 400 |
200 | 8” | 832 | 841 | 832 | 192 | 483 | 393.7 | 270 | 92 | 6.4 | 12-45 | 584 | 280 | 400 |
250 | 10” | 991 | 1000 | 991 | 239 | 585 | 482.6 | 324 | 108 | 6.4 | 12-51 | 650 | 340 | 500 |
300 | 12” | 1130 | 1146 | 1130 | 287 | 675 | 571.5 | 381 | 124 | 6.4 | 16-54 | 700 | 370 | 600 |
2500LB Main External Dimension(Unit:mm)
DN | NPS | L | d | D | D1 | D2 | b | f | z-d | H | H1 | W | ||
RF | RJ | BW | ||||||||||||
40 | 1 1/2” | 384 | 387 | 384 | 38 | 203 | 146 | 73 | 44.5 | 6.4 | 4-32 | 290 | 105 | 300 |
50 | 2” | 451 | 454 | 451 | 42 | 235 | 171.4 | 92 | 51 | 6.4 | 8-29 | 320 | 120 | 300 |
65 | 2 1/2” | 508 | 514 | 508 | 52 | 267 | 196.8 | 105 | 57.5 | 6.4 | 8-32 | 350 | 130 | 300 |
80 | 3” | 578 | 584 | 578 | 62 | 305 | 228.6 | 127 | 67 | 6.4 | 8-35 | 400 | 150 | 300 |
100 | 4” | 673 | 683 | 673 | 87 | 356 | 273 | 157 | 76.5 | 6.4 | 8-42 | 425 | 180 | 400 |
125 | 5” | 794 | 807 | 794 | 100 | 419 | 323.8 | 186 | 92.5 | 6.4 | 8-48 | 500 | 210 | 400 |
150 | 6” | 914 | 927 | 914 | 131 | 483 | 368.3 | 216 | 108 | 6.4 | 8-54 | 590 | 230 | 500 |
200 | 8” | 1022 | 1038 | 1022 | 197 | 550 | 438.1 | 270 | 127 | 6.4 | 12-54 | 610 | 290 | 500 |
250 | 10” | 1270 | 1292 | 1270 | 223 | 675 | 539.7 | 324 | 165.5 | 6.4 | 12-67 | 660 | 350 | 600 |
