Design Specifications
Design standards | Structure length | Flange connection | Test and inspection |
BS1873,API 623 | ASME B16.10 | ASME B16.5 | API598 |
Pressure Test
Pressure rate | Shell test (Mpa) | Sealing test (Mpa) | Temperature | Suitable medium |
150LB | 3 | 2 | ≤600℃ | Water,Oil,Gas |
300LB | 7.5 | 5.5 | ||
600LB | 15 | 11 | ||
900LB | 22.5 | 16.5 | ||
1500LB | 38.3 | 28.1 | ||
2500LB | 63.83 | 46.81n |

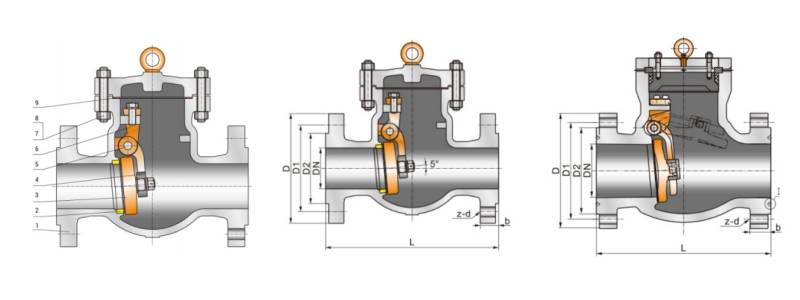

Material of Main Parts
NO. | Part Name | Part Material |
1 | Body | ASTM A216-WCB ASTM A217-WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
2 | Seat | A105 F11,F22,F5,F9 F304.F316. F321.F304L,F316L |
3 | Disc | ASTM A216-WCB ASTM A217-WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
4 | Arm | ASTM A216-WCB ASTM A217-WC6,WC9,C5 ASTM A351-CF8,CF8M,CF3,CF3M |
5 | Pin | A105 F11,F22,F5,F9 F304.F316. F321.F304L,F316L |
6 | Racking | A193-B7, A320-B8A193-B8M |
7 | Stud | ASTMA193-B7,A320-B8,A193-B8M |
8 | Nut | ASTM A194-2H,A194-8,A194-8M |
9 | Gasket | Graphite&stainless steel |
150LB Main External Dimension(Unit:mm)
NPS | L | D | D1 | D2 | b | z-d |
2” | 203 | 150 | 120.7 | 92.1 | 19.5 | 4-19 |
2 1/2” | 216 | 180 | 139.7 | 104.8 | 22.7 | 4-19 |
3” | 241 | 190 | 152.4 | 127 | 24.3 | 4-19 |
4” | 292 | 230 | 190.5 | 157.2 | 24.3 | 8-19 |
5” | 330 | 255 | 215.9 | 185.7 | 24.3 | 8-22 |
6” | 356 | 280 | 241.3 | 215.9 | 25.9 | 8-22 |
8” | 495 | 345 | 298.5 | 269.9 | 29 | 8-22 |
10” | 622 | 405 | 362 | 323.8 | 30.6 | 12-26 |
12” | 698 | 485 | 431.8 | 381 | 32.2 | 12-26 |
14” | 787 | 535 | 476.3 | 412.8 | 35.4 | 12-29 |
16” | 864 | 596 | 539.8 | 469.9 | 37 | 16-29 |
18” | 978 | 635 | 577.9 | 533.4 | 40.1 | 16-32 |
20” | 978 | 700 | 635 | 584.2 | 43.3 | 20-32 |
24” | 1295 | 815 | 749.3 | 692.2 | 48.1 | 20-35 |
300LB Main External Dimension(Unit:mm)
NPS | L | D | D1 | D2 | b | z-d |
2” | 267 | 165 | 127 | 92.1 | 22.7 | 8-19 |
2 1/2” | 292 | 190 | 149.2 | 104.8 | 25.9 | 8-22 |
3” | 318 | 210 | 168.3 | 127 | 29 | 8-22 |
4” | 356 | 255 | 200 | 157.2 | 32.2 | 8-22 |
5” | 400 | 280 | 235 | 185.7 | 35.4 | 8-22 |
6” | 444 | 320 | 269.9 | 215.9 | 37 | 12-22 |
8” | 533 | 380 | 330.2 | 269.9 | 41.7 | 12-26 |
10” | 622 | 445 | 387.4 | 323.8 | 48.1 | 16-29 |
12” | 711 | 520 | 450.8 | 381 | 51.3 | 16-32 |
14” | 838 | 585 | 514.4 | 412.8 | 54.4 | 20-32 |
16” | 864 | 650 | 571.5 | 469.9 | 57.6 | 20-35 |
18” | 978 | 710 | 628.6 | 533.4 | 60.8 | 24-35 |
20” | 1016 | 775 | 685.8 | 584.2 | 64 | 24-35 |
24” | 1346 | 915 | 812.8 | 692.2 | 70.3 | 24-41 |
600LB Main External Dimension(Unit:mm)
NPS | L | D | D1 | D2 | b | z-d |
2” | 292 | 165 | 127 | 92.1 | 32.4 | 8-19 |
2 1/2” | 330 | 190 | 149.2 | 104.8 | 35.6 | 8-22 |
3” | 356 | 210 | 168.3 | 127 | 38.8 | 8-22 |
4” | 432 | 275 | 215.9 | 157.2 | 45.1 | 8-26 |
5” | 508 | 330 | 266.7 | 185.7 | 51.5 | 8-29 |
6” | 559 | 355 | 292.1 | 215.9 | 54.7 | 12-29 |
8” | 660 | 420 | 349.2 | 269.9 | 62.6 | 12-32 |
10” | 787 | 510 | 431.8 | 323.8 | 70.5 | 16-35 |
12” | 838 | 560 | 489 | 381 | 73.7 | 20-35 |
14” | 889 | 605 | 527 | 412.8 | 76.9 | 20-38 |
16” | 991 | 685 | 603.2 | 469.9 | 83.2 | 20-41 |
18” | 1092 | 745 | 654 | 533.4 | 89.6 | 20-44.5 |
20” | 1194 | 815 | 723.9 | 584.2 | 95.9 | 24-44.5 |
24” | 1397 | 940 | 838.2 | 692.2 | 108.6 | 24-51 |
900LB Main External Dimension(Unit:mm)
NPS | L | D | D1 | D2 | b | z-d |
2” | 368 | 215 | 165.1 | 92.1 | 45.1 | 8-26 |
2 1/2” | 419 | 245 | 190.5 | 104.8 | 48.3 | 8-29 |
3” | 381 | 240 | 190.5 | 127 | 45.1 | 8-29 |
4” | 457 | 290 | 235 | 157.2 | 51.5 | 8-32 |
5” | 559 | 350 | 279.4 | 185.7 | 57.8 | 8-35 |
6” | 610 | 380 | 317.5 | 215.9 | 62.6 | 12-32 |
8” | 737 | 470 | 393.7 | 269.9 | 70.5 | 12-38 |
10” | 838 | 545 | 469.9 | 323.8 | 76.9 | 16-38 |
12” | 965 | 610 | 533.4 | 381 | 86.4 | 20-38 |
14” | 1029 | 640 | 558.8 | 412.8 | 92.8 | 20-41 |
16” | 1130 | 705 | 616 | 469.9 | 95.9 | 20-44.5 |
18” | 1219 | 785 | 685.8 | 533.4 | 108.6 | 20-51 |
20” | 1321 | 855 | 749.3 | 584.2 | 115 | 20-54 |
24” | 1549 | 1040 | 901.7 | 692.2 | 146.7 | 20-67 |
