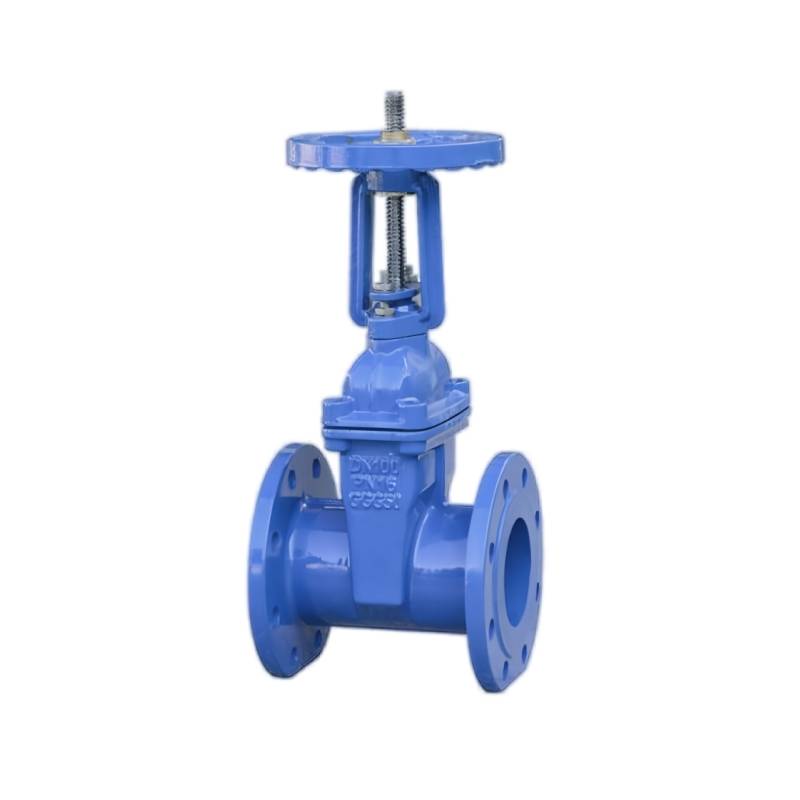

DIN3352 F4 F5 Rising Stem Resilient Seat Gate Valve

Enquiry

Product Description

No Description Specification
1 Nominal Diameter DN40-DN600
2 Nominal Pressure PN10/PN16
3 Design Standard DIN3352 F4/F5
4 Face to Face Standard EN558&ISO5752 Series-14/15
5 Flange Standard DIN2533
6 Testing Standard DIN3230
7 Expoxy Coating Minimum 250 microns
8 Shell Test 1.5 Mpa/2.4Mpa
9 Sealing Test 1.1 Mpa/ 1.76 Mpa
10 Working Temperature 120℃ (Max)



Material List of Valve Parts

NO. Part Material NO. Part Material
1 Body Ductile Iron GGG50 9 Gland Ductile Iron GGG50
2 Wedge Ductile Iron GGG50 EPDM 10 Yoke Ductile Iron GGG50
3 Stem Nut Brass 11 Stem Nut Brass
4 Stem SS420 12 Hand Wheel Ductile Iron GGG50
5 Bolts CS Gr 8.8 13 Lock Nut Carbon Steel
6 Gasket EPDM 14 Pin Carbon Steel
7 Bonnet Ductile Iron GGG50 15 Nut Carbon Steel
8 O Ring NBR 15 Bolts Carbon Steel



DIN 3352 F4 Main Connection Dimension

DN L PN10 PN16 f W H
D C B n-d b D C B n-d b
DN40 140 150 110 84 4-19 18 150 110 84 4-19 18 3 160 350
DN50 150 165 125 99 4-19 19 165 125 99 4-19 19 3 160 365
DN65 170 185 145 119 4-19 19 185 145 119 4-19 19 3 160 400
DN80 180 200 160 133 4-19 19 200 160 133 8-19 19 3 180 470
DN100 190 220 180 154 8-19 19 220 180 154 8-19 19 3 200 525
DN125 200 250 210 184 8-19 19 250 210 184 8-19 19 3 250 660
DN150 210 285 240 210 8-23 19 285 240 210 8-23 19 3 250 725
DN200 230 340 295 265 8-23 20 340 295 265 12-23 20 3 300 930
DN250 250 405 350 319 12-23 22 405 355 319 12-28 22 3 330 1200
DN300 270 460 400 370 12-23 24.5 460 410 370 12-28 24.5 4 380 1310
DN350 290 520 460 429 16-23 24.5 520 470 429 16-28 26.5 4 490 1655
DN400 310 565 515 480 16-28 24.5 580 525 480 16-31 28 4 490 1785
DN500 330 640 565 530 20-28 25.5 640 585 530 20-31 30 4 490 1905
DN550 350 670 620 582 20-28 26.5 715 650 609 20-34 31.5 4 590 2195
DN600 390 780 725 682 20-31 30 840 770 720 20-37 36 5 590 2475



DIN 3352 F5 Main Connection Dimension

DN L PN10 PN16 f W H
D C B n-d b D C B n-d b
DN40 240 150 110 84 4-19 18 150 110 84 4-19 18 3 160 350
DN50 250 165 125 99 4-19 19 165 125 99 4-19 19 3 160 365
DN65 270 185 145 119 4-19 19 185 145 119 4-19 19 3 160 400
DN80 280 200 160 133 4-19 19 200 160 133 8-19 19 3 180 470
DN100 300 220 180 154 8-19 19 220 180 154 8-19 19 3 200 525
DN125 325 250 210 184 8-19 19 250 210 184 8-19 19 3 250 660
DN150 350 285 240 210 8-23 19 285 240 210 8-23 19 3 250 725
DN200 400 340 295 265 8-23 20 340 295 265 12-23 20 3 300 930
DN250 450 405 350 319 12-23 22 405 355 319 12-28 22 3 330 1200
DN300 500 460 400 370 12-23 24.5 460 410 370 12-28 24.5 4 380 1310
DN350 550 520 460 429 16-23 24.5 520 470 429 16-28 26.5 4 490 1655
DN400 600 565 515 480 16-28 24.5 580 525 480 16-31 28 4 490 1785
DN500 650 640 565 530 20-28 25.5 640 585 530 20-31 30 4 490 1905
DN550 700 670 620 582 20-28 26.5 715 650 609 20-34 31.5 4 590 2195
DN600 800 780 725 682 20-31 30 840 770 720 20-37 36 5 590 2475
