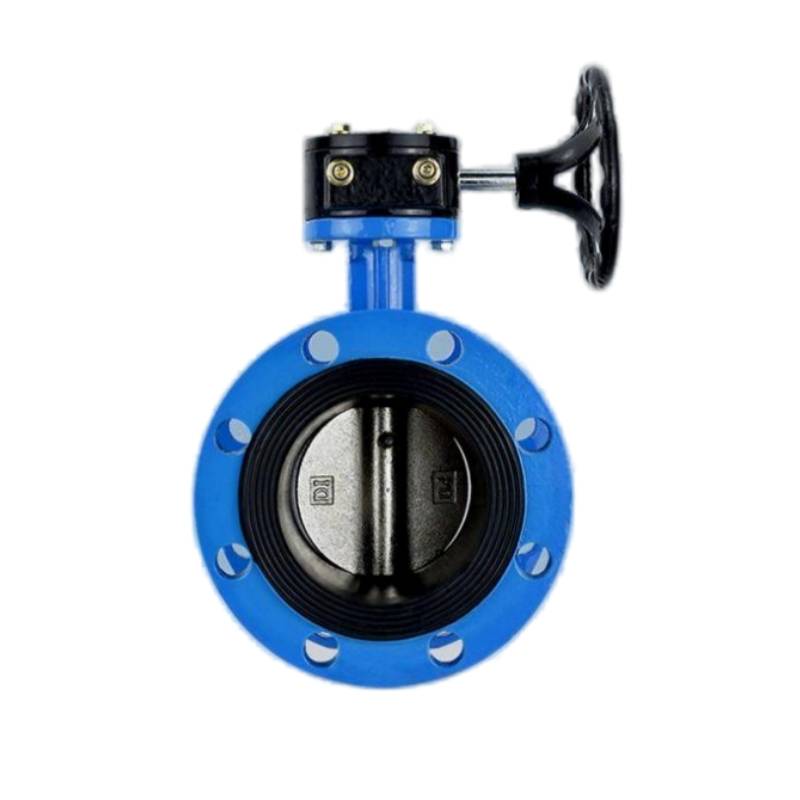

Flange Butterfly Valve Central Line Structure

Product Description

Main Connection Dimension(Unit:mm)

NPS DN L PN10 PN16 150LB
Inch mm D1 n-z D1 n-z D1 n-z
2 50 108 125 4-φ18 125 4-φ18 120.6 4-φ19
2.5 65 112 145 4-φ18 145 4-φ18 139.7 4-φ19
3 80 114 160 4-φ18 160 8-φ18 152.4 4-φ19
4 100 127 180 8-φ18 180 8-φ18 190.5 8-φ19
5 125 140 210 8-φ18 210 8-φ18 215.9 8-φ22.4
6 150 140 240 8-φ22 240 8-φ22 241.3 8-φ22.4
8 200 152 295 8-φ22 295 12-φ22 298.4 8-φ22.4
10 250 165 350 12-φ22 355 12-φ22 361.9 12-25.4
12 300 177 400 12-φ22 410 16-φ22 431.8 12-25.4
