Fully Welded Ball Valve With Filter

Enquiry

Product Description

Design Standard

1.Q/320506 FDV01-2013

2:GB/T 12224-20052.GB/T 12220-1989

3.GB/T 12223-2005

4.JB/T 12006-2014

5.GB/T 37827-2019

6.GB/T 9113

7.GB/T 12221-2005

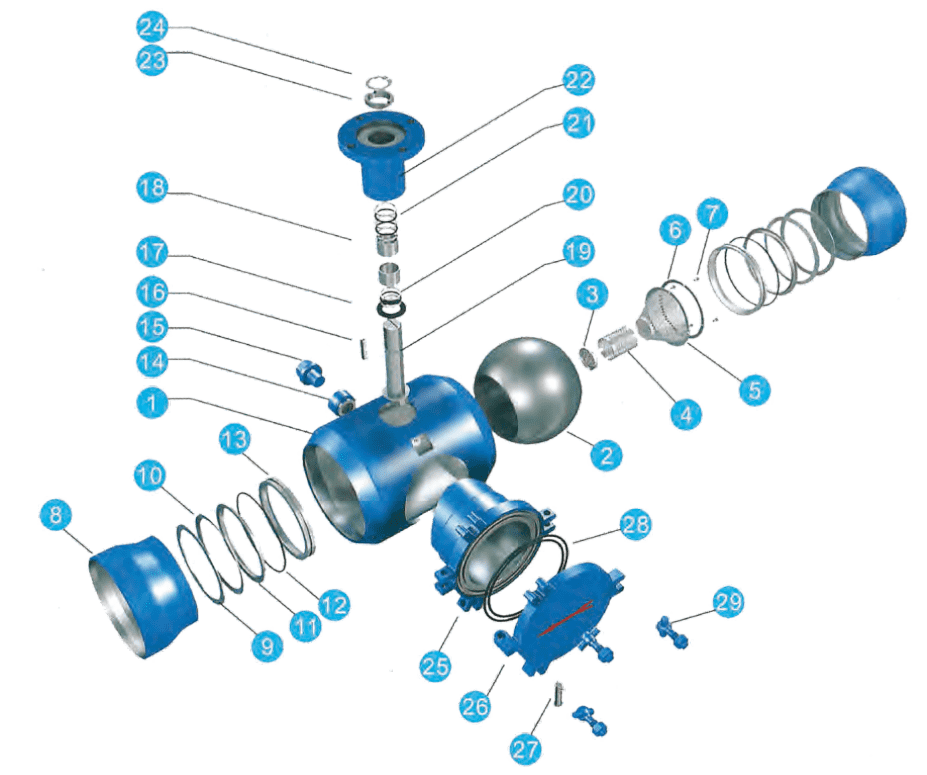

Material of Main Parts

NO. Part Name Material NO. Part Name Material
1 Body 1 20# 11 Support Ring SS
2 Ball 304 12 O ring FKM
3 Screen End 304 13 Seal Ring PTFE+CS
4 Cylindrical Screen 304 14 Pressure Relif Seat PTFE+CS
5 Conical Screen 304 15 Pressure Relif Valve Q235
6 Support Ring 304 16 Key 65Mn
7 Hex Nail SS 17 Gasket 20#
8 Body 2 20# 18 Bearing 35#
9 Gasket SS 19 Stem 25#
10 Disc Spring SS 20 Gasket PTFE+CS



Full Bore Ball Valve Main External Dimension (Unit:mm)

DN PN L D G1 G2 G3 H h t s
15 25 230 15 42.4 26.7 21.3 90 33 4 115
20 25 230 20 48.3 33.7 26.7 128 37 5 160
25 25 260 25 60.3 42.4 33.7 133 37 5 160
32 25 260 32 76.1 48.3 42.4 140 50 5 170
40 25 300 40 88.9 60.3 48.3 144 50 5 170
50 25 300 50 108 76.1 60.3 169 65 5 290
65 25 300 65 127 88.9 76.1 177 65 5 310
80 25 325 80 159 114 88.9 197 75 6 380
100 25 325 100 194 140 114 212 77 7 400
125 25 400 125 219 168 140 228 82 8 430
150 25 400 150 273 219 168 258 107 8 430



Reduced Bore Ball Valve Main External Dimension (Unit:mm)

DN PN L D G1 G2 H h t s
15 40 230 10 33.7 21.3 85 42 4 115
20 40 230 15 42.4 26.9 90 40 4 115
25 40 230 20 48.3 33.7 95 40 4 160
32 40 260 25 60.3 42.4 100 38 3 160
40 40 260 32 76.1 48.3 120 50 5 170
50 40 300 40 88.9 60.3 124 50 5 170
65 25 300 50 108 76.1 134 53 5 290
80 25 300 65 127 88.9 142 65 5 310
100 25 325 80 159 114 172 75 6 380
125 25 325 100 194 140 189 77 7 400
150 25 350 125 219 168 210 82 8 430
200 25 400 150 273 219 258 107 8 430
