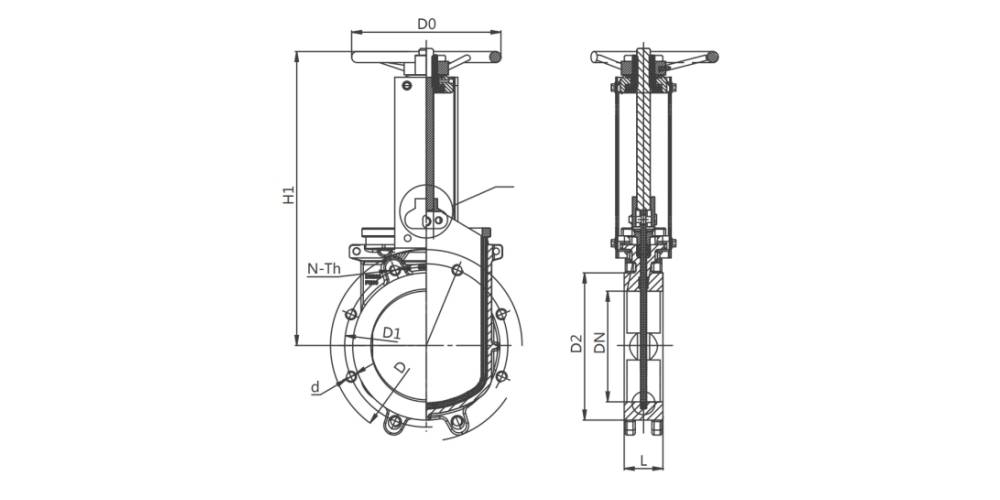

Main Connection Dimension
DN | NPS | L | H | ANSI 150LB | DIN2632 PN10 | ||||||||
D | D1 | D2 | D0 | N-Th | D | D1 | D2 | D0 | N-Th | ||||
50 | 2” | 48 | 260 | 152 | 121 | 92 | 180 | 4-5/8” | 165 | 125 | 99 | 180 | 4-M16 |
65 | 2 1/2” | 48 | 292 | 178 | 140 | 105 | 200 | 4-5/8” | 185 | 145 | 118 | 200 | 4-M16 |
80 | 3” | 51 | 320 | 191 | 153 | 127 | 200 | 4-5/8” | 200 | 160 | 132 | 200 | 8-M16 |
100 | 4” | 51 | 358 | 229 | 191 | 157 | 240 | 8-5/8” | 220 | 180 | 156 | 240 | 8-M16 |
125 | 5” | 57 | 395 | 254 | 216 | 186 | 260 | 8-3/4” | 250 | 210 | 184 | 260 | 8-M16 |
150 | 6” | 57 | 450 | 279 | 242 | 216 | 280 | 8-3/4” | 285 | 240 | 211 | 280 | 8-M20 |
200 | 8” | 70 | 504 | 343 | 299 | 270 | 30 | 8-3/4” | 340 | 295 | 266 | 300 | 8-M20 |
250 | 10” | 70 | 532 | 406 | 362 | 324 | 320 | 12-7/8” | 395 | 350 | 319 | 320 | 12-M20 |
300 | 12” | 76 | 670 | 483 | 432 | 381 | 350 | 12-7/8” | 445 | 400 | 370 | 35 | 12-M20 |
350 | 14” | 76 | 758 | 533 | 476 | 413 | 400 | 12-1” | 505 | 460 | 429 | 400 | 16-M20 |
400 | 16” | 89 | 857 | 597 | 540 | 470 | 450 | 16-1” | 565 | 515 | 480 | 450 | 16-M24 |
450 | 18” | 89 | 946 | 635 | 578 | 533 | 500 | 16-1 1/8” | 615 | 565 | 530 | 500 | 20-M24 |
500 | 20” | 114 | 1023 | 699 | 635 | 584 | 500 | 20-1 1/8” | 670 | 620 | 582 | 500 | 20-M24 |
550 | 22” | 114 | 1105 | 750 | 692 | 641 | 500 | 20-1 1/4” | 725 | 680 | 638 | 500 | 20-M27 |
600 | 24” | 114 | 1233 | 813 | 750 | 691 | 500 | 20-1 1/4” | 780 | 725 | 682 | 500 | 20-M27 |
