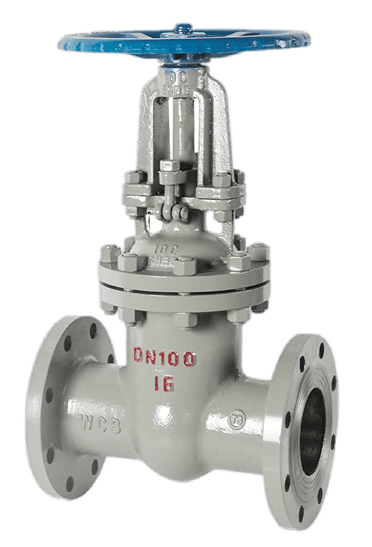

Pressure Test Specification
Nominal pressure (MPa) | Shell test pressure (MPa) | Sealing test pressure (MPa) | Temperature | Suitable medium |
1.6 | 24 | 1.76 | ≤600℃ | Water ,Oil & Gas |
2.5 | 3.75 | 2.75 | ||
4 | 6 | 4.4 | ||
6.3 | 9.45 | 6.93 | ||
10 | 15 | 11 | ||
16 | 24 | 17.6 | ||
25 | 37.5 | 27.5 |

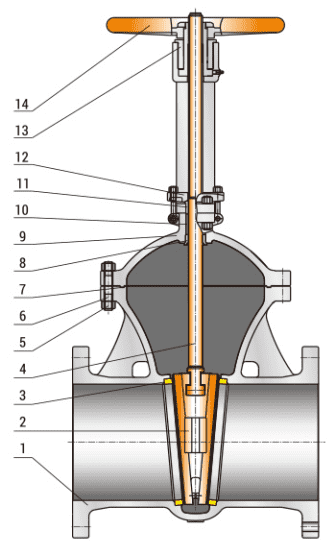

Material of Main Parts
NO. | Part Name | Part Material |
1 | Body | WCB,WC6,WC9,C5,CF8,CF8M,CF3,CF3M |
2 | Wedge | WCB WC6,WC9,C5,CF8,CF8M,CF3,CF3M |
3 | Seat | A105,304,1Cr5Mo12Cr1Mo1V,316 |
4 | Stem | 1Cr13,2Cr131Cr18Ni9Ti,OCr18Ni12Mo2Ti,20Cr1Mo1V,25Cr2MoV |
5 | Stud | 35CrMoA OCr18Ni9,OCr17Ni12Mo2,25Cr2MoV |
6 | Nut | 45,35CrMoA,25Cr2MoV,OCr18Ni9,0Cr17Ni12Mo2, |
7 | Gasket | Graphite & Stainless steel |
8 | Back seat | 1Cr13,2Cr131Cr18Ni9Ti,0Cr18Ni12Mo2Ti 20Cr1Mo1V,25Cr2MoV |
9 | Bonnet | WCB,WC6,WC9,C5,CF8,CF8M,CF3,CF3M |
10 | Packing | Graphite |
11 | Gland cover | 1Cr13,2Cr13 1Cr18Ni9TLOCr18Ni12Mo2Ti |
12 | Gland flange | WCB,CF8,CF8M,CF3,CF3M |
13 | Yoke nut | Copper Alloy |
14 | Hand wheel | KTH330,QT400-17 |
PN10 GATE VALVE MAIN EXTERNAL DIMENSIONS(Unit:mm)
DN | L | D | D1 | D2 | b | Z-d | H |
50 | 180 | 165 | 125 | 102 | 18 | 4-18 | 345 |
65 | 195 | 185 | 145 | 122 | 18 | 8-18 | 360 |
80 | 210 | 200 | 160 | 138 | 20 | 8-18 | 380 |
100 | 230 | 220 | 180 | 158 | 20 | 8-18 | 430 |
125 | 255 | 250 | 210 | 188 | 22 | 8-18 | 520 |
150 | 280 | 285 | 240 | 212 | 22 | 8-22 | 600 |
200 | 330 | 355 | 295 | 268 | 24 | 8-22 | 765 |
250 | 380 | 390 | 350 | 320 | 26 | 12-22 | 930 |
300 | 420 | 440 | 400 | 370 | 26 | 12-22 | 1080 |
350 | 450 | 500 | 460 | 430 | 26 | 16-22 | 1200 |
400 | 480 | 565 | 515 | 482 | 26 | 16-26 | 1400 |
450 | 510 | 615 | 565 | 532 | 28 | 20-26 | 1500 |
500 | 540 | 670 | 620 | 585 | 28 | 20-26 | 1630 |
600 | 600 | 780 | 725 | 685 | 34 | 20-30 | 1830 |
700 | 660 | 895 | 840 | 800 | 35 | 24-30 | 1930 |
800 | 720 | 1010 | 950 | 905 | 38 | 24-33 | 2030 |
900 | 780 | 1110 | 1050 | 1005 | 38 | 28-33 | 2130 |
1000 | 840 | 1220 | 1160 | 1115 | 44 | 28-33 | 2230 |
PN16 GATE VALVE MAIN EXTERNAL DIMENSIONS(Unit:mm)
DN | L | D | D1 | D2 | b | Z-d | H |
50 | 250 | 165 | 125 | 102 | 18 | 4-18 | 350 |
65 | 265 | 185 | 145 | 122 | 18 | 8-18 | 370 |
80 | 280 | 200 | 160 | 138 | 20 | 8-18 | 390 |
100 | 300 | 220 | 180 | 158 | 20 | 8-18 | 435 |
125 | 325 | 250 | 210 | 188 | 22 | 8-18 | 520 |
150 | 350 | 285 | 240 | 212 | 22 | 8-22 | 610 |
200 | 400 | 340 | 295 | 268 | 24 | 12-22 | 780 |
250 | 450 | 405 | 355 | 320 | 26 | 12-26 | 960 |
300 | 500 | 460 | 410 | 378 | 28 | 12-26 | 1080 |
350 | 550 | 520 | 470 | 428 | 30 | 16-26 | 1200 |
400 | 600 | 580 | 525 | 490 | 32 | 16-30 | 1400 |
450 | 650 | 640 | 585 | 550 | 40 | 20-30 | 1500 |
500 | 700 | 715 | 650 | 610 | 44 | 20-33 | 1630 |
600 | 800 | 840 | 770 | 725 | 54 | 20-36 | 1830 |
700 | 900 | 910 | 840 | 795 | 58 | 24-36 | 1930 |
800 | 1000 | 1025 | 950 | 900 | 62 | 24-39 | 2030 |
900 | 1100 | 1125 | 1050 | 1000 | 64 | 28-39 | 2130 |
1000 | 1200 | 1255 | 1170 | 1115 | 68 | 28-42 | 2230 |
PN25 GATE VALVE MAIN EXTERNAL DIMENSIONS(Unit:mm)
DN | L | D | D1 | D2 | b | Z-d | H |
50 | 250 | 165 | 125 | 102 | 20 | 4-18 | 350 |
65 | 265 | 185 | 145 | 122 | 22 | 8-18 | 370 |
80 | 280 | 200 | 160 | 138 | 24 | 8-18 | 390 |
100 | 300 | 235 | 190 | 162 | 24 | 8-22 | 435 |
125 | 325 | 270 | 220 | 188 | 26 | 8-26 | 520 |
150 | 350 | 300 | 250 | 218 | 28 | 8-26 | 610 |
200 | 400 | 360 | 310 | 278 | 30 | 12-26 | 785 |
250 | 450 | 425 | 370 | 335 | 32 | 12-30 | 930 |
300 | 500 | 485 | 430 | 395 | 34 | 16-30 | 1080 |
350 | 550 | 555 | 490 | 450 | 38 | 16-33 | 1250 |
400 | 600 | 620 | 550 | 505 | 40 | 16-36 | 1430 |
450 | 650 | 670 | 600 | 555 | 46 | 20-36 | 1520 |
500 | 700 | 730 | 660 | 615 | 48 | 20-36 | 1650 |
600 | 800 | 845 | 770 | 720 | 58 | 20-39 | 1850 |
700 | 900 | 960 | 875 | 820 | 60 | 24-42 | 1950 |
800 | 1000 | 1085 | 990 | 928 | 66 | 24-48 | 2050 |
900 | 1100 | 1185 | 1090 | 1028 | 70 | 28-48 | 2150 |
1000 | 1200 | 1320 | 1210 | 1140 | 74 | 28-56 | 2250 |
PN40 GATE VALVE MAIN EXTERNAL DIMENSIONS(Unit:mm)
DN | L | D | D1 | D2 | b | Z-d | H |
50 | 250 | 165 | 125 | 102 | 20 | 4-18 | 350 |
65 | 280 | 185 | 145 | 122 | 22 | 8-18 | 370 |
80 | 310 | 200 | 60 | 138 | 24 | 8-18 | 390 |
100 | 350 | 235 | 190 | 162 | 24 | 8-22 | 435 |
125 | 400 | 270 | 220 | 188 | 26 | 8-26 | 520 |
150 | 450 | 300 | 250 | 218 | 28 | 8-26 | 610 |
200 | 550 | 375 | 320 | 285 | 34 | 12-30 | 920 |
250 | 650 | 450 | 385 | 345 | 38 | 12-33 | 980 |
300 | 750 | 515 | 450 | 410 | 42 | 16-33 | 1080 |
350 | 850 | 580 | 510 | 465 | 46 | 16-36 | 1250 |
400 | 950 | 660 | 585 | 535 | 50 | 16-39 | 1460 |
450 | 1050 | 685 | 610 | 560 | 57 | 20-39 | 1520 |
500 | 1150 | 755 | 670 | 615 | 57 | 20-42 | 1650 |
600 | 1350 | 890 | 795 | 735 | 72 | 20-48 | 1850 |
