Separated Body Bi-directional Knife Gate Valve

Product Description

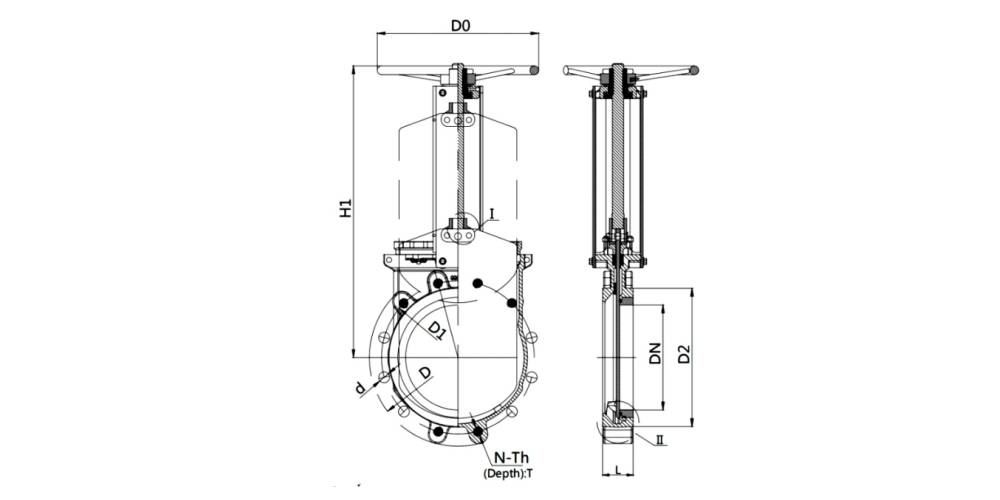

Main Connection Dimension

DN NPS L H ANSI 150LB DIN2632 PN10
D D1 D2 D0 N-Th D D1 D2 D0 N-Th
50 2” 48 260 152 121 92 180 4-5/8” 165 125 99 180 4-M16
65 2 1/2” 48 292 178 140 105 200 4-5/8” 185 145 118 200 4-M16
80 3” 51 320 191 153 127 200 4-5/8” 200 160 132 200 8-M16
100 4” 51 358 229 191 157 240 8-5/8” 220 180 156 240 8-M16
125 5” 57 395 254 216 186 260 8-3/4” 250 210 184 260 8-M16
150 6” 57 450 279 242 216 280 8-3/4” 285 240 211 280 8-M20
200 8” 70 504 343 299 270 30 8-3/4” 340 295 266 300 8-M20
250 10” 70 532 406 362 324 320 12-7/8” 395 350 319 320 12-M20
300 12” 76 670 483 432 381 350 12-7/8” 445 400 370 35 12-M20
350 14” 76 758 533 476 413 400 12-1” 505 460 429 400 16-M20
400 16” 89 857 597 540 470 450 16-1” 565 515 480 450 16-M24
450 18” 89 946 635 578 533 500 16-1 1/8” 615 565 530 500 20-M24
500 20” 114 1023 699 635 584 500 20-1 1/8” 670 620 582 500 20-M24
550 22” 114 1105 750 692 641 500 20-1 1/4” 725 680 638 500 20-M27
600 24” 114 1233 813 750 691 500 20-1 1/4” 780 725 682 500 20-M27
